CE ROHS Hall Effect Transmitter Split Core Type Current Transformer

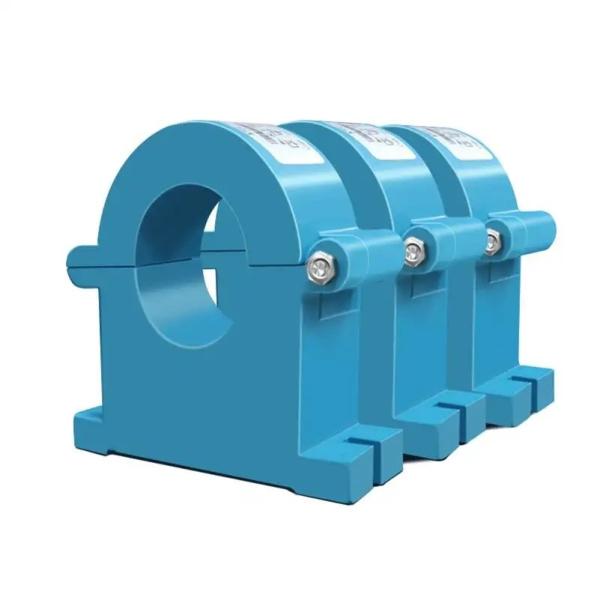

The TKC-EKBDA series dismountable current transmitter is a open loop device based on the principle of the hall effect. with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.
Electrical data(Ta=25℃±5℃)
Type
Parameter | TKC200 EKBDA | TKC500 EKBDA | TKC800 EKBDA | TKC1000 EKBDA | TKC1500 EKBDA | TKC2000 EKBDA | Unit |
| Rated current(Ipn AC) | ±200 | ±500 | ±800 | ±1000 | ±1500 | ±2000 | A |
| Measuring range(Ip AC) | ±400 | ±1000 | ±1600 | ±2000 | ±3000 | ±3000 | A |
Rated output (Io DC) | @Ip=Ipn AC 4～20±1.0% | mA |
Supply voltage | 24±5% | V |
| Power Consumption | +35+Io | mA |
Zero current | @Ip=0 4±0.1 | mA |
Offset drift | @ -40～+85℃ ≤±0.005 | mA/℃ |
output drift | @ -40～+85℃ ≤±0.005 | mA/℃ |
Linearity | @Ip=Ipn AC ≤1 | %FS |
Response time | ≤200 | mS |
Bandwidth | 20～20000 | Hz |
Galvanic isolation | @ 50HZ, AC ,1min 2.5 | KV |
Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Mechanical dimension(for reference only)
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm
Directions for use
When the current will be measured goes through a transmitter, The voltage will be measured at the output end.
(Note: The false wiring may result in the damage of the transmitter).
The output amplitude of the transmitter can be adjusted according to users’ requirements.
Custom design in the different rated input current and the output voltage available.
Standards
- UL94-V0.
- EN60947-1:2004
- IEC60950-1:2001
- EN50178:1998
- SJ 20790-2000
General date
| | Value | Unit | Symbol |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40～+125 | ºC | TS |
| Mass(approx) | 68 | g | M |
