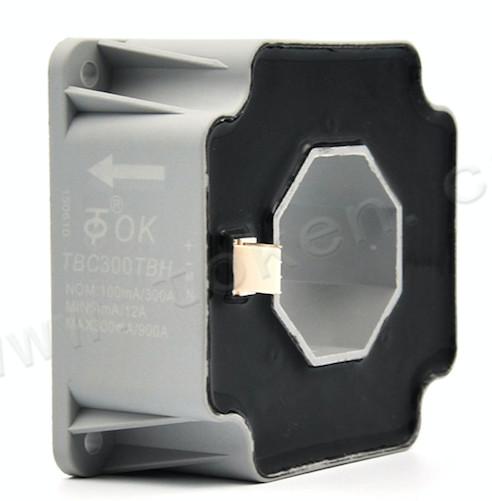

Closed Loop Hall Effect Current Transducer Ac Current Sensor -40～+85
The TBC-TBH Series current sensor is a closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit, the size of primary doesn’t affect test precision, no matter the location of primary in the hole of current sensor, It can really measure resolution 1000:1 and it uses for precision measurement of DC, AC and pulse current.
| Electrical data(Ta=25℃±5℃) |
Type
Parameter | TBC300TBH | TBC400TBH | TBC500TBH | Unit |
Rated input (Ipn) | 12-300 | 16-400 | 20-500 | A |
Measure range(Ip) | 900(±24V,33Ω) | 1200(±24V,24Ω) | 1500(±24V,12Ω) | A |
|
Measure resister
with ±15V | @±300Amax 100(max) | @±400Amax 82(max) | @±500Amax 75(max) | Ω |
| @±600Amax 27(max) | @±800Amax 15(max) | @±1000Amax 8.2(max) | Ω |
|
Measure resister
with ±18V | @±300Amax 120(max) | @±400Amax 110(max) | @±500Amax 100(max) | Ω |
| @±900Amax 10(max) | @±1200Amax 5.0(max) | @±1200Amax 8.2(max) | Ω |
| Turns ratio(Np/Ns) | 1:3000 | 1:4000 | 1:5000 | |
| Secondary coil resister | 40 | 50 | 60 | Ω |
| Rated output (Isn) | @Ip=±Ipn ±100±0.2%FS | mA |
| Supply voltage | ±15～±24 | V |
| Power consumption | 20+IpX(Np/Ns) | mA |
| Zero offset current | @Ip=0 ≤±0.2 | mA |
| Offset current drift | @ -40℃～85℃ ≤±0.5 | mA |
| Response time | @100A/μS,10%-90% ＜1 | μs |
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS |
| Galvanic isolation | @ 50HZ,AC,1min 6 | KV |
| di/dt accurately followed | ＞100 | A/μs |
| Bandwidth | @ -3dB DC…100 | KHz |
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
| Mechanical dimension(for reference only) |
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm
Is will be in a forward direction when the Ip flows according to the direction of the arrowhead.
The primary conductor should be≤120℃.
The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.
- UL94-V0.
- EN60947-1:2004
- IEC60950-1:2001
- EN50178:1998
- SJ 20790-2000
| | Value | Unit | Symbol |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40 to +125 | ºC | TS |
| Mass(approx) | 329 | g | M |
Pulse current signal response characteristic Effects of impulse noise
